UK residential drainage · No-dig repair
Drain Relining UK – No-Dig Drain Repair
Recurring blockages, cracked drains or tree-root damage? Drain relining can repair many damaged pipes from the inside without excavating gardens, driveways or floors.
Describe the problem and enter your postcode. We help route drain relining enquiries to suitable specialists servicing your area.
No-Dig Repair
Many damaged drains can be repaired internally without extensive excavation.

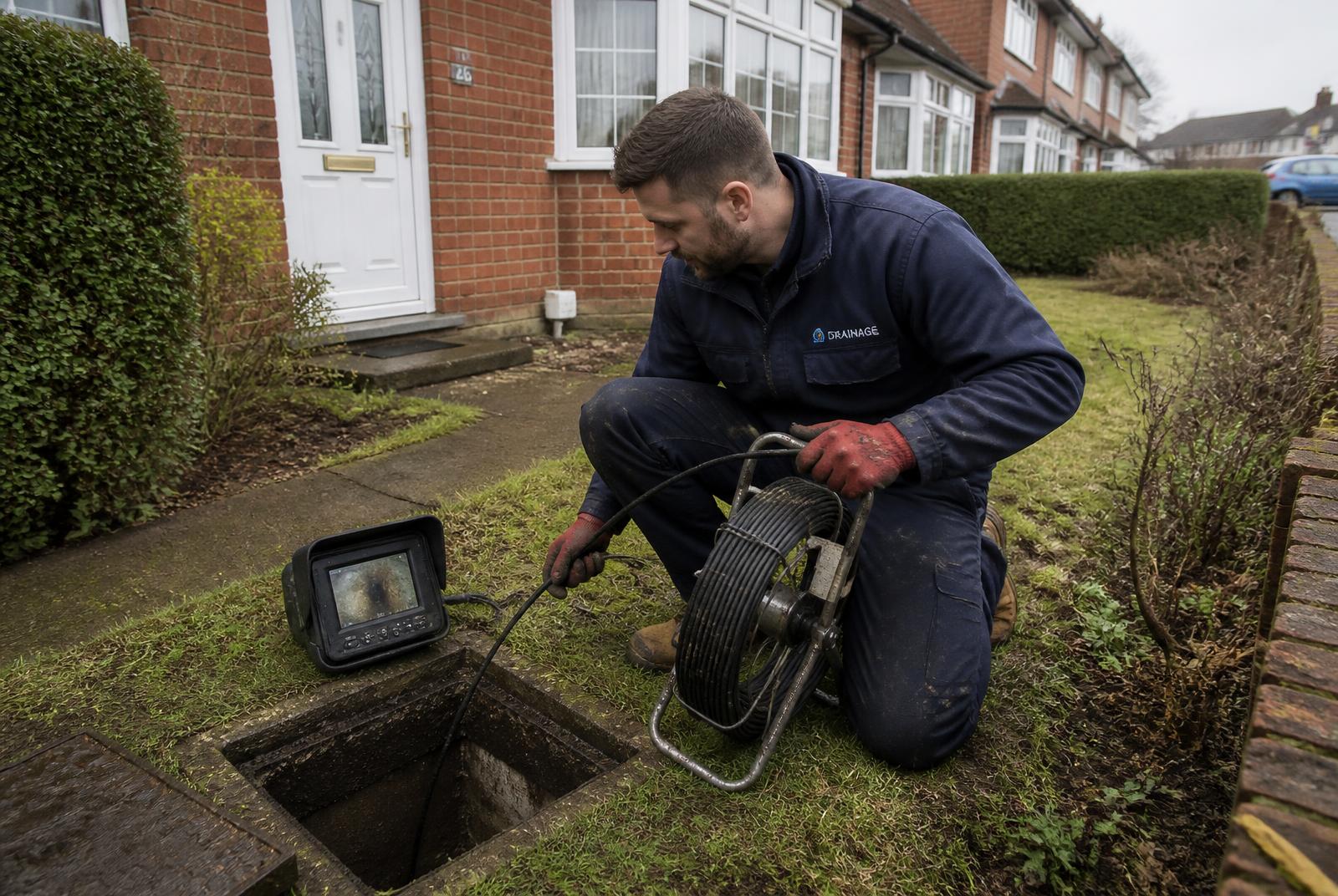

CCTV Diagnosis
CCTV surveys help identify cracks, roots and structural defects before a repair method is selected.
Postcode Matching
Your postcode helps route the enquiry to a specialist servicing your area.
Common problems
Drain problems that often lead to a relining enquiry
Different symptoms point towards different defects. These pages explain what usually sits behind each one.
The drain keeps blocking
A drain that clears then blocks again within weeks often has something holding debris back — roots, a lip at a displaced joint, or a deformed section. Why drains keep blocking.
Cracked or damaged pipe
Older clay drains crack along the barrel or fail at joints as ground moves. Cracked drain pipe repair options.
Tree roots in the drain
Fine roots find damp cracks, then thicken inside the pipe. Dealing with tree roots in drains.
How it works
How drain relining works
Relining forms a new resin liner against the inside wall of the existing pipe. Access is usually through an inspection chamber, so the pipe itself normally stays in the ground.
- 01
CCTV survey
The pipe is filmed so the defect, its distance from the chamber and the pipe condition are all recorded.
- 02
Cleaning and preparation
Debris, scale and any root growth are removed by jetting or cutting so the liner can bond to a sound surface.
- 03
Liner installation
A resin-impregnated liner is inserted and inflated against the pipe wall over the damaged length.
- 04
Curing
The resin hardens in place — ambient, hot water, steam or UV, depending on the system used.
- 05
Final CCTV check
A second survey confirms the liner is seated, junctions are open and the bore is clear.
- 06
Written record
Ask the specialist for the post-repair footage and a written description of what was lined.
Diagnosis first
Why the CCTV survey comes first
A camera survey turns guesswork into a decision. It shows whether you are dealing with a hairline crack, an open joint, root intrusion or a section that has already lost its shape — and that determines whether relining, a patch or excavation is appropriate.
As a rough market guide, a basic survey is often around £150–£300, rising to roughly £250–£400 where a written report with defect coding is included.
Survey to repair, in order
- 1. CCTV survey — record what is actually wrong and where.
- 2. Identify the defect — crack, open joint, roots, deformation or collapse.
- 3. Choose the method — patch lining, full relining, or excavation where the pipe is beyond lining.
- 4. Written quotation — scope, length, method and warranty terms in writing.
Costs
Drain relining costs in the UK
Pricing depends on diameter, length, access and how much preparation the pipe needs. The figures below are general market guidance, not fixed quotations.
| Work | Typical UK price guidance |
|---|---|
| Basic CCTV drain survey | £150–£300 |
| CCTV survey with detailed report | £250–£400 |
| Drain relining, 100 mm pipe | £70–£130 per metre |
| Drain relining, 150 mm pipe | £120–£170 per metre |
| Localised patch repair | £350–£1,200 |
| Short relining project | £600–£2,000 |
Compare the options
Relining or excavation?
Neither method wins every time. This is the short version — the full comparison sets out where each one makes sense.
| Factor | Drain relining | Excavation |
|---|---|---|
| Digging | Usually minimal | Normally required |
| Garden or driveway disruption | Lower | Potentially significant |
| Installation time | Often shorter | Often longer |
| Severely collapsed pipe | May not be suitable | May be necessary |
Coverage
London and Manchester
We route enquiries across England, Scotland and Wales. These two pages cover the local property and drainage conditions in more detail.
Drain relining in London
Victorian and Edwardian drainage, terraced access constraints and pipes running beneath rear extensions and paved gardens. Drain relining London.
Drain relining in Manchester
Older clay laterals across the suburbs, root intrusion from mature street trees and repeat blockages in shared rear drainage. Drain relining Manchester.
Before you commit
Choosing a Drain Relining Specialist
We pass enquiries on; we do not vet or certify companies. It is worth checking a few things yourself before accepting any quotation.
- Relevant drainage experience, and evidence of previous relining or patch lining work
- A CCTV drain survey before any repair method is recommended
- A written quotation rather than a verbal figure
- A clear scope of works: which section of pipe, what length, what preparation
- The repair method proposed, and why it suits your pipe condition
- A post-repair CCTV recording where appropriate
- Written warranty terms, including what is and is not covered
FAQ
Drain relining questions, answered briefly
How much does drain relining cost?
Many standard UK residential relining jobs work out around £85–£150 per metre, and a localised patch repair often falls somewhere between £350 and £1,200. Length, pipe diameter, access and preparation all move the figure, so treat these as market guidance rather than a quotation.
Is drain relining cheaper than digging up the pipe?
Often, but not always. Relining avoids most excavation and the cost of reinstating a driveway, patio or lawn. Where a pipe is badly collapsed or very deep, excavation may still be the more sensible option and the comparison changes.
Can a cracked drain be relined?
Many cracked clay or concrete drains can be lined, provided the pipe still holds its shape and can be cleaned properly. A CCTV survey is what establishes whether a full liner, a patch or replacement is realistic.
Can tree-root damaged drains be relined?
Frequently yes. Roots are normally cut out first, then the crack or joint they entered through is lined so the pipe wall is sealed. If roots have displaced or broken the pipe apart, a section may need replacing instead.
Do I need a CCTV drain survey?
For a repair decision, effectively yes. Nobody can sensibly quote a relining or patch repair without seeing the defect, its position and the pipe condition on camera.
How do I know whether relining or excavation is required?
It comes down to what the camera shows: crack pattern, joint displacement, deformation, root volume and how much of the pipe bore is still intact. A specialist should explain the reasoning in a written quotation.
Next step
Tell us about your drain problem
Describe the problem and enter your postcode. We help route drain relining enquiries to suitable specialists servicing your area.
We are an enquiry service, not a drainage contractor. The specialist who receives your enquiry carries out the CCTV survey, quotation and any repair work.
